NTN 1R180X205X69

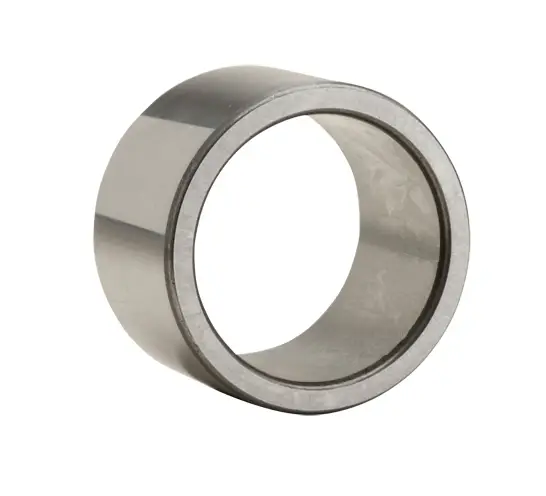

Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Inner Ring
Bore Type
Round
Material
High Carbon Chrome Steel
Tolerance
ISO Class 0 (RBEC 1)
Weight
4.020 kg

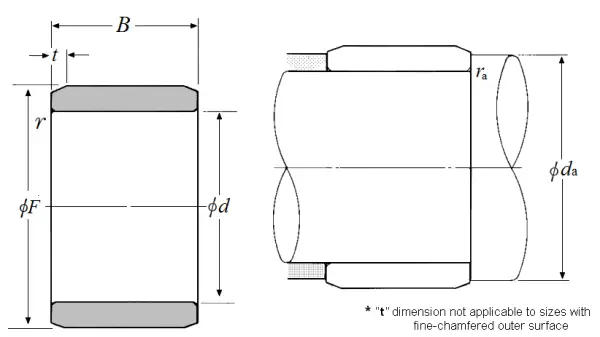

Dimensional Specifications
d
180.000 mm
F
205.000 mm
B
69.000 mm
r
2.000 mm
t
3.000 mm
da min
189.000 mm
ras max
2.000 mm
