NTN 1R190X215X69
Inner Ring
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Inner Ring
Bore Type
Round
Material
High Carbon Chrome Steel
Tolerance
ISO Class 0 (RBEC 1)
Weight
4.180 kg

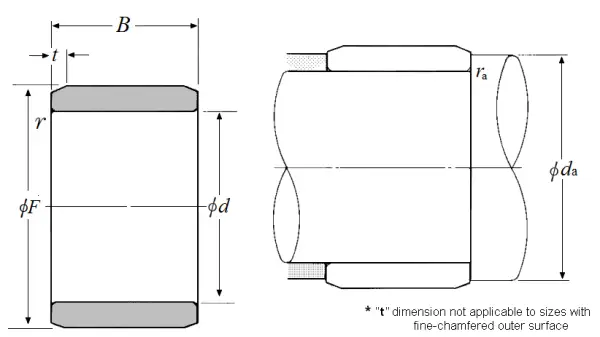

Dimensional Specifications
d
190.000 mm
F
215.000 mm
B
69.000 mm
r
2.100 mm
t
3.500 mm
da min
199.000 mm
ras max
2.000 mm
