NTN 1R200X220X50
Inner Ring
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Inner Ring
Bore Type
Round
Material
High Carbon Chrome Steel
Tolerance
ISO Class 0 (RBEC 1)
Weight
2.500 kg

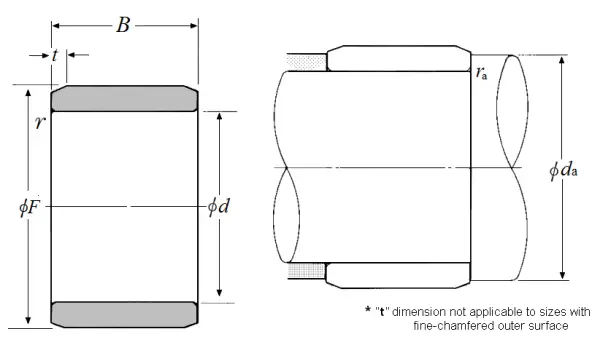

Dimensional Specifications
d
200.000 mm
F
220.000 mm
B
50.000 mm
r
1.500 mm
t
3.500 mm
da min
208.000 mm
ras max
1.500 mm
