NTN 1R200X225X80
Inner Ring
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Inner Ring
Bore Type
Round
Material
High Carbon Chrome Steel
Tolerance
ISO Class 0 (RBEC 1)
Weight
5.130 kg

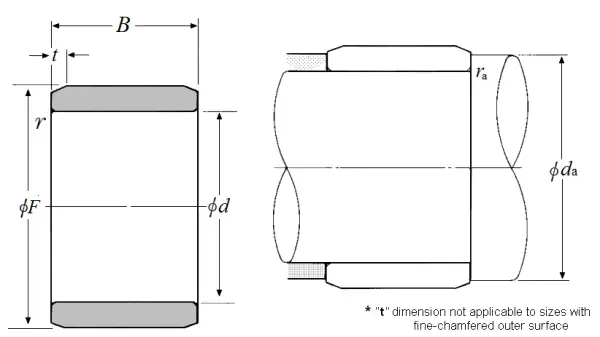

Dimensional Specifications
d
200.000 mm
F
225.000 mm
B
80.000 mm
r
2.000 mm
t
3.500 mm
da min
211.000 mm
ras max
2.000 mm
