NTN 1R20X25X23
Inner Ring
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Inner Ring
Bore Type
Round
Material
High Carbon Chrome Steel
Tolerance
ISO Class 0 (RBEC 1)
Weight
0.031 kg

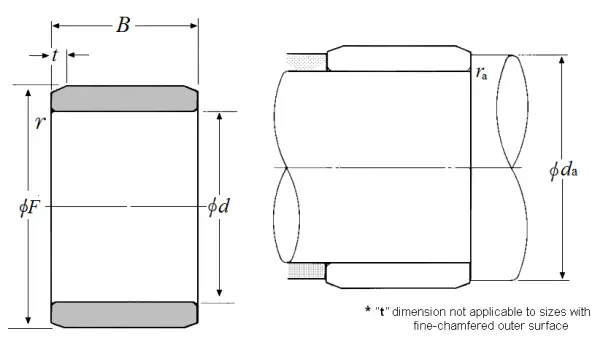

Dimensional Specifications
d
20.000 mm
F
25.000 mm
B
23.000 mm
r
0.300 mm
t
1.800 mm
da min
22.000 mm
ras max
0.300 mm
