NTN 1R45X50X32
Inner Ring
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Inner Ring
Bore Type
Round
Material
High Carbon Chrome Steel
Tolerance
ISO Class 0 (RBEC 1)
Weight
0.092 kg

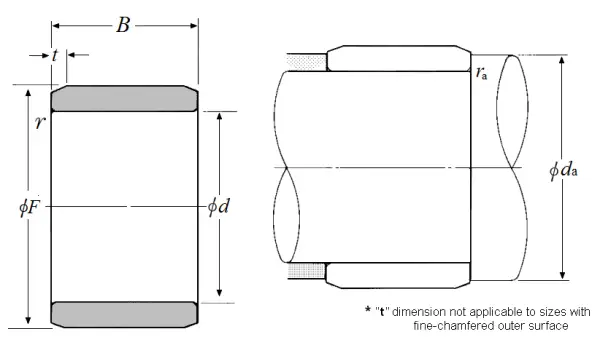

Dimensional Specifications
d
45.000 mm
F
50.000 mm
B
32.000 mm
r
0.600 mm
da min
49.000 mm
ras max
0.600 mm
