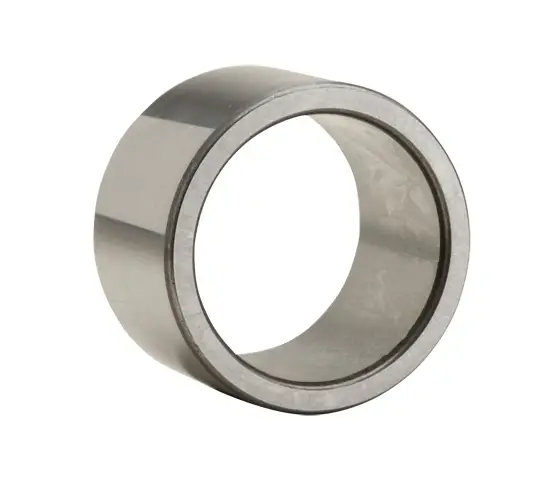

NTN 1R55X60X25
Inner Ring
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Inner Ring
Bore Type
Round
Material
High Carbon Chrome Steel
Tolerance
ISO Class 0 (RBEC 1)
Weight
0.086 kg

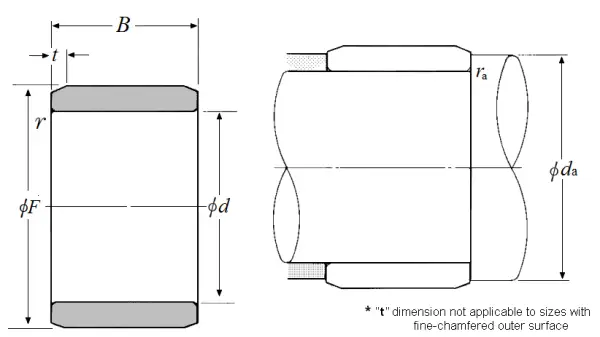

Dimensional Specifications
d
55.000 mm
F
60.000 mm
B
25.000 mm
r
0.600 mm
t
2.200 mm
da min
59.000 mm
ras max
0.600 mm
