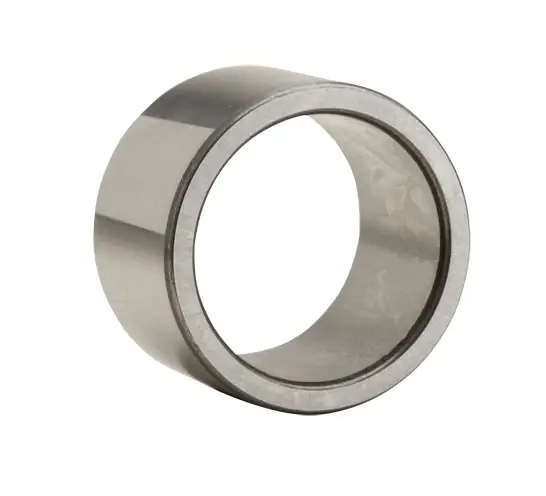

NTN 1R5X8X16
Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Inner Ring
Bore Type
Round
Material
High Carbon Chrome Steel
Tolerance
ISO Class 0 (RBEC 1)
Weight
0.004 kg

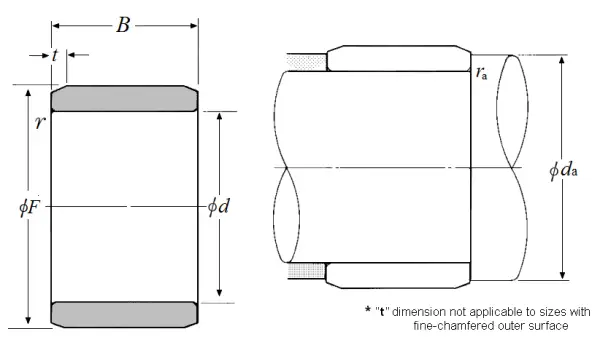

Dimensional Specifications
d
5.000 mm
F
8.000 mm
B
16.000 mm
r
0.300 mm
da min
7.000 mm
ras max
0.300 mm
