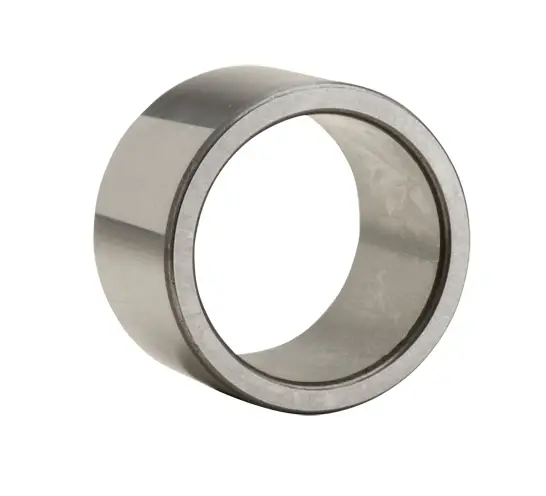

NTN 1R95X105X26
Inner Ring
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Inner Ring
Bore Type
Round
Material
High Carbon Chrome Steel
Tolerance
ISO Class 0 (RBEC 1)
Weight
0.289 kg

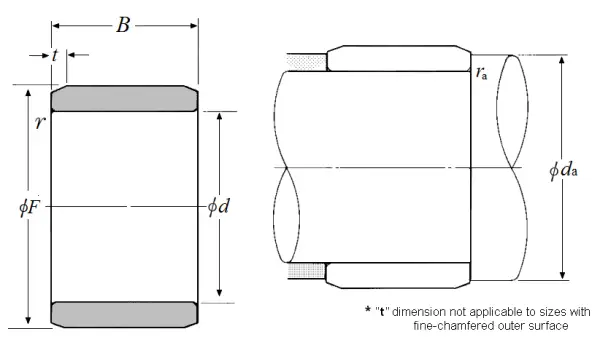

Dimensional Specifications
d
95.000 mm
F
105.000 mm
B
26.000 mm
r
1.000 mm
t
2.500 mm
da min
100.000 mm
ras max
1.000 mm
