NTN 22309EKF800
Shaker Screen Spherical Roller Bearing w/ Tapered Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Shaker Screen Spherical Roller Bearing
Bore Type
Tapered
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
5700 RPM
Limiting Speed - Grease
4600 RPM
e
0.39
Y1
1.90
Y2
2.83
Y0
1.86
Series
223
Radial Internal Clearance
C4
Ring Modification
Plain
Tolerance
JIS-0 RBEC-1
Taper
1:12
Static Load Rating
187000 N
Dynamic Load Rating
206000 N
Enclosure
Open
Weight
1.380 kg
Operating Temperature Range
-40 to 200 ºC

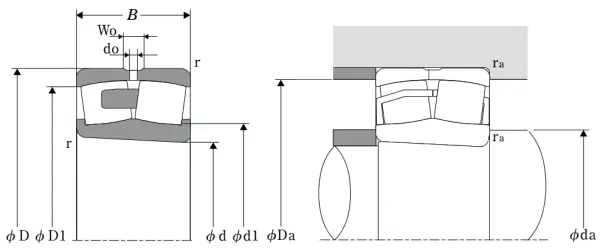

Dimensional Specifications
d
45.000 mm
D
100.000 mm
B
36.000 mm
d1
58.000 mm
D1
87.000 mm
r
1.500 mm
W0
6.400 mm
d0
3.000 mm
da min
54.000 mm
Da max
91.000 mm
ras max
1.500 mm
