NTN 22310EKF800
Shaker Screen Spherical Roller Bearing w/ Tapered Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Shaker Screen Spherical Roller Bearing
Bore Type
Tapered
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Brass
e
0.36
Y1
1.87
Y2
2.79
Y0
1.83
Series
223
Radial Internal Clearance
C4
Ring Modification
Plain
Tolerance
JIS-0 RBEC-1
Taper
1:12
Static Load Rating
232000 N
Dynamic Load Rating
237000 N
Enclosure
Open
Weight
1.810 kg
Operating Temperature Range
-40 to 200 ºC

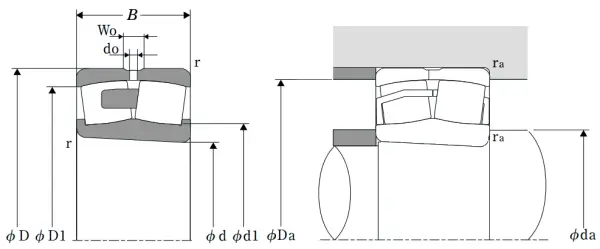

Dimensional Specifications
d
50.000 mm
D
110.000 mm
B
40.000 mm
d1
63.000 mm
D1
95.000 mm
r
2.000 mm
W0
7.400 mm
d0
3.500 mm
da min
61.000 mm
Da max
99.000 mm
ras max
2.000 mm
