NTN 22316EKF800
Shaker Screen Spherical Roller Bearing w/ Tapered Bore
(BRAND):NTN
(Availability):In Stock
(EMAIL):info@noksbearings.com
REQUEST A QUOTE
Detailed data of Product
similar to product
Detailed data of
22316EKF800
Shaker Screen Spherical Roller Bearing w/ Tapered Bore
Technical Specifications
Type
Shaker Screen Spherical Roller Bearing
Bore Type
Tapered
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Brass
e
0.34
Y1
2.00
Y2
2.98
Y0
1.96
Series
223
Radial Internal Clearance
C4
Ring Modification
Plain
Tolerance
JIS-0 RBEC-1
Taper
1:12
Static Load Rating
522000 N
Dynamic Load Rating
515000 N
Enclosure
Open
Weight
6.180 kg
Operating Temperature Range
-40 to 200 ºC

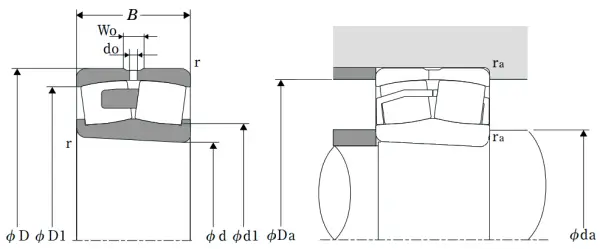

Dimensional Specifications
d
80.000 mm
D
170.000 mm
B
58.000 mm
d1
98.000 mm
D1
148.000 mm
r
2.100 mm
W0
10.400 mm
d0
5.000 mm
da min
92.000 mm
Da max
158.000 mm
ras max
2.100 mm
