NTN 22320EKF800
Shaker Screen Spherical Roller Bearing w/ Tapered Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Shaker Screen Spherical Roller Bearing
Bore Type
Tapered
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Brass
e
0.34
Y1
1.98
Y2
2.94
Y0
1.93
Series
223
Radial Internal Clearance
C4
Ring Modification
Plain
Tolerance
JIS-0 RBEC-1
Taper
1:12
Static Load Rating
844000 N
Dynamic Load Rating
787000 N
Enclosure
Open
Weight
12.700 kg
Operating Temperature Range
-40 to 200 ºC

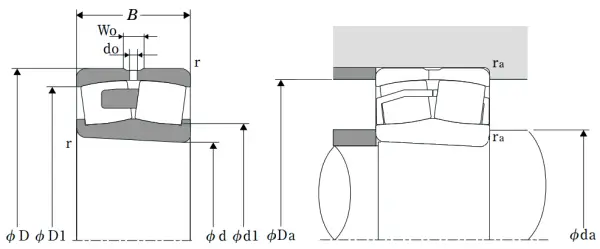

Dimensional Specifications
d
100.000 mm
D
215.000 mm
B
73.000 mm
d1
127.000 mm
D1
187.000 mm
r
3.000 mm
W0
13.300 mm
d0
6.000 mm
da min
114.000 mm
Da max
201.000 mm
ras max
3 mm
