NTN 22332EKF800
Shaker Screen Spherical Roller Bearing w/ Tapered Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Shaker Screen Spherical Roller Bearing
Bore Type
Tapered
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Brass
e
0.33
Y1
2.03
Y2
3.02
Y0
1.98
Series
223
Radial Internal Clearance
C4
Ring Modification
Plain
Tolerance
JIS-0 RBEC-1
Taper
1:12
Static Load Rating
2210000 N
Dynamic Load Rating
1850000 N
Enclosure
Open
Weight
50.300 kg
Operating Temperature Range
-40 to 200 ºC

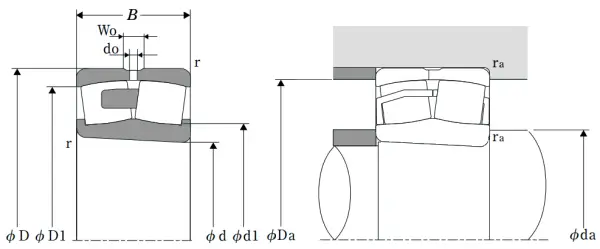

Dimensional Specifications
d
160.000 mm
D
340.000 mm
B
114.000 mm
d1
205.000 mm
D1
296.000 mm
r
4.000 mm
W0
20.300 mm
d0
10.000 mm
da min
177.000 mm
Da max
323.000 mm
ras max
4.000 mm
