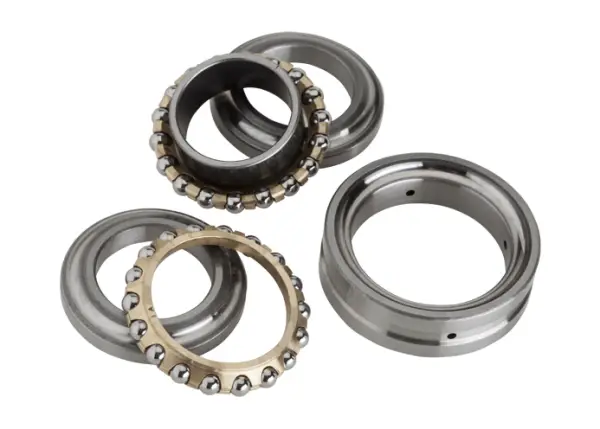

NTN 562012/GNP5
Double Direction Angular Contact Thrust Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Thrust Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Brass
Ball Material
Steel
Limiting Speed - Oil
5700 RPM
Limiting Speed - Grease
4300 RPM
Seal Type
None
Seal Material
None
Precision
ISO Class 5
Configuration
Two
Static Load Rating
103000 N
Dynamic Load Rating
37500 N
Enclosure
Open
Weight
1.060 kg
Operating Temperature Range
-40 to 120 ºC

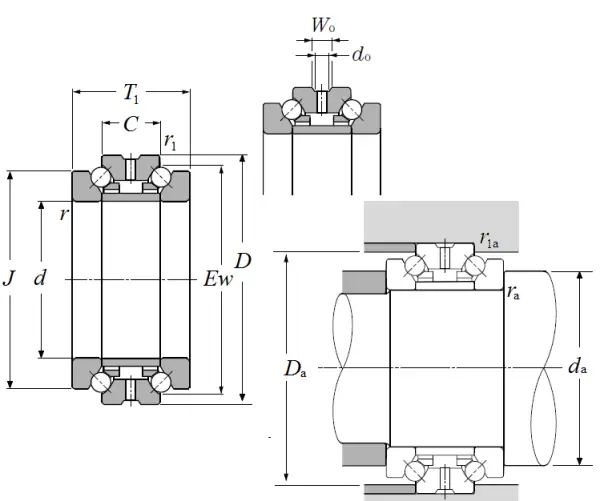

Dimensional Specifications
d
60.000 mm
D
95.000 mm
C
22.000 mm
T1
44.000 mm
J
83.000 mm
Ew
86.100 mm
r
1.100 mm
r1
0.600 mm
Wo
8.000 mm
do
4.000 mm
Contact Angle
60 º
da min
72.500 mm
Da max
72.500 mm
ras max
1.000 mm
r1as max
0.600 mm
