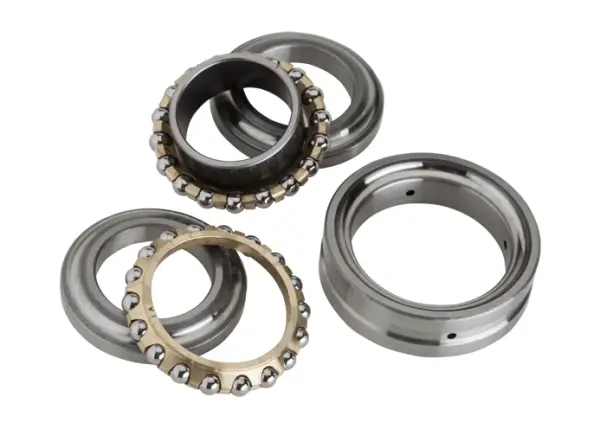

NTN 562016
Double Direction Angular Contact Thrust Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Thrust Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Brass
Ball Material
Steel
Limiting Speed - Oil
4500 RPM
Limiting Speed - Grease
3300 RPM
Seal Type
None
Seal Material
None
Configuration
Two
Static Load Rating
178000 N
Dynamic Load Rating
57500 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

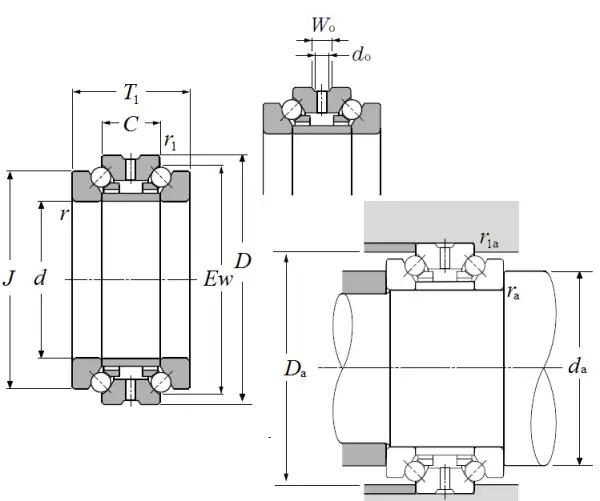

Dimensional Specifications
d
80.000 mm
D
125.000 mm
C
27.000 mm
T1
54.000 mm
J
110.000 mm
Ew
113.000 mm
r
1.100 mm
r1
0.600 mm
Wo
8.000 mm
do
4.000 mm
Contact Angle
60 º
da min
96.500 mm
Da max
96.500 mm
ras max
1.000 mm
r1as max
0.600 mm
