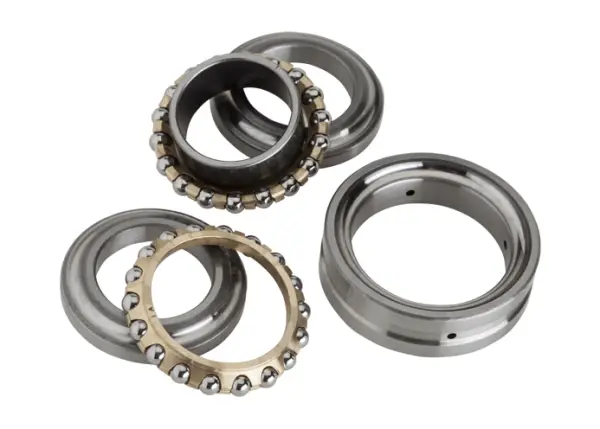

NTN 562020M
Double Direction Angular Contact Thrust Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Thrust Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Brass
Ball Material
Steel
Limiting Speed - Oil
3800 RPM
Limiting Speed - Grease
2900 RPM
Seal Type
None
Seal Material
None
Configuration
Two
Static Load Rating
229000 N
Dynamic Load Rating
68500 N
Enclosure
Open
Weight
3.000 kg
Operating Temperature Range
-40 to 120 ºC

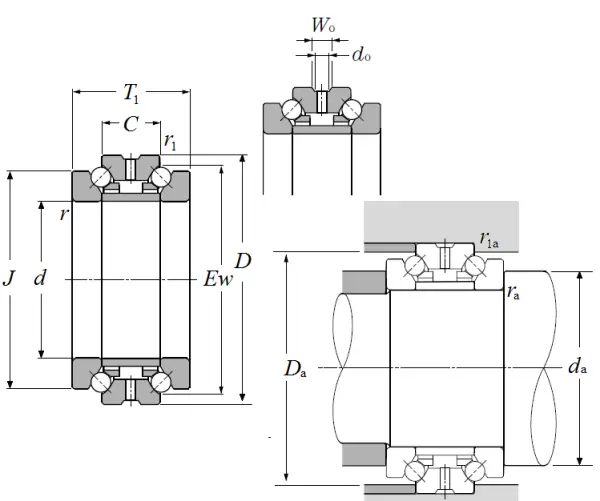

Dimensional Specifications
d
103.000 mm
D
150.000 mm
C
30.000 mm
T1
60.000 mm
J
133.000 mm
Ew
137.000 mm
r
1.500 mm
r1
1.000 mm
Wo
8.000 mm
do
4.000 mm
Contact Angle
60 º
da min
119.000 mm
Da max
119.000 mm
ras max
1.500 mm
r1as max
1.000 mm
