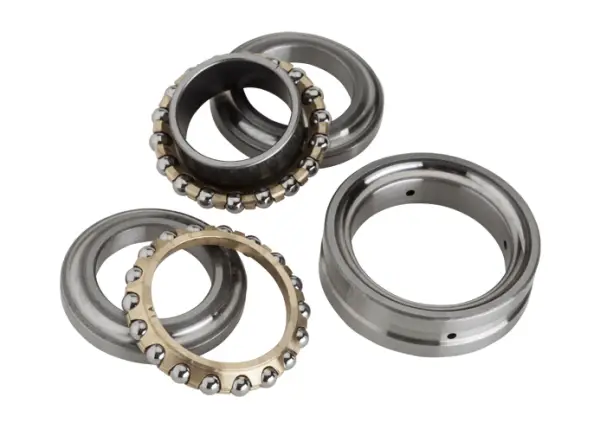

NTN 562022M
Double Direction Angular Contact Thrust Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Thrust Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Brass
Ball Material
Steel
Limiting Speed - Oil
3300 RPM
Limiting Speed - Grease
2400 RPM
Seal Type
None
Seal Material
None
Configuration
Two
Static Load Rating
315000 N
Dynamic Load Rating
96000 N
Enclosure
Open
Weight
4.900 kg
Operating Temperature Range
-40 to 120 ºC

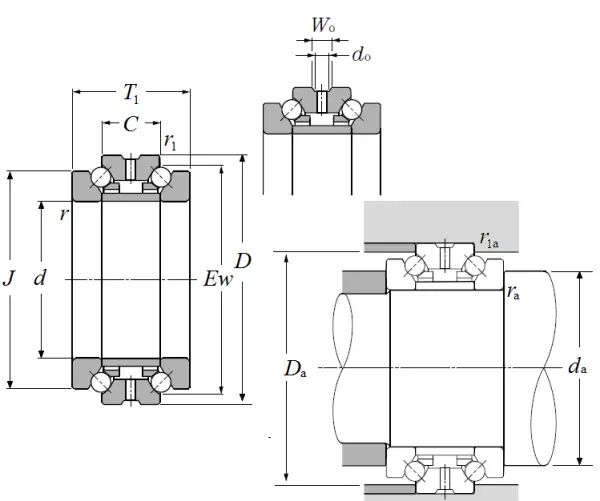

Dimensional Specifications
d
114.000 mm
D
170.000 mm
C
36.000 mm
T1
72.000 mm
J
150.000 mm
Ew
155.000 mm
r
2.000 mm
r1
1.000 mm
Wo
12.000 mm
do
6.000 mm
Contact Angle
60 º
da min
133 mm
Da max
133.000 mm
ras max
2.000 mm
r1as max
1.000 mm
