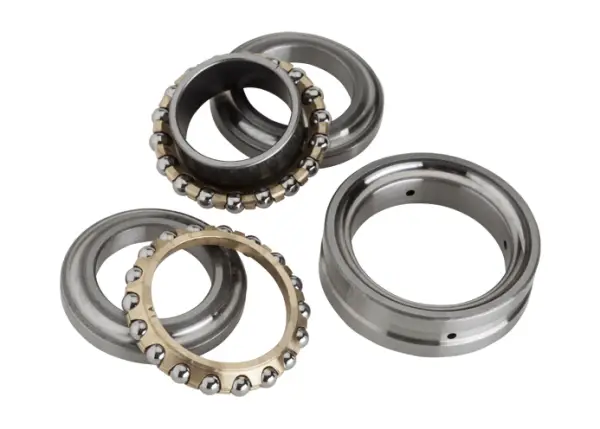

NTN 562024/GNP4
Double Direction Angular Contact Thrust Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Thrust Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Brass
Ball Material
Steel
Limiting Speed - Oil
3200 RPM
Limiting Speed - Grease
2400 RPM
Seal Type
None
Seal Material
None
Precision
ISO Class 4
Configuration
Two
Static Load Rating
335000 N
Dynamic Load Rating
98000 N
Enclosure
Open
Weight
5.730 kg
Operating Temperature Range
-40 to 120 ºC

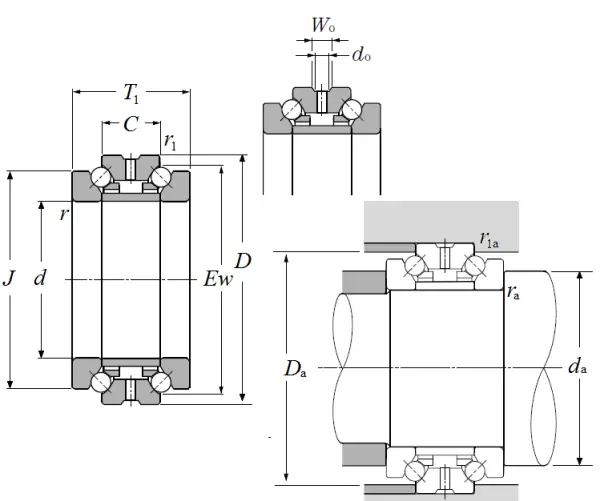

Dimensional Specifications
d
120.000 mm
D
180.000 mm
C
36.000 mm
T1
72.000 mm
J
160.000 mm
Ew
165.000 mm
r
2.000 mm
r1
1.000 mm
Wo
12.000 mm
do
6.000 mm
Contact Angle
60 º
da min
143.000 mm
Da max
143.000 mm
ras max
2.000 mm
r1as max
1.000 mm
