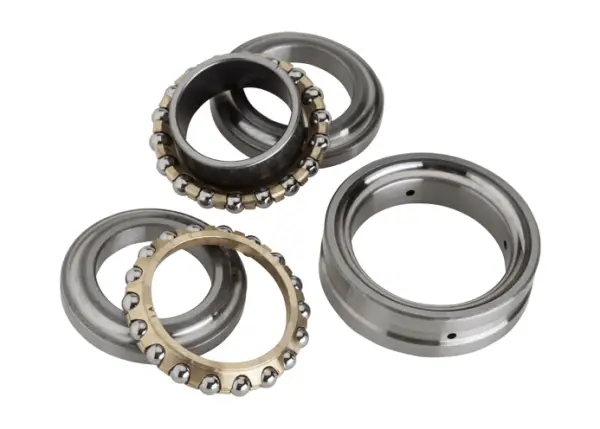

NTN 562032M
Double Direction Angular Contact Thrust Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Thrust Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Brass
Ball Material
Steel
Limiting Speed - Oil
2300 RPM
Limiting Speed - Grease
1700 RPM
Seal Type
None
Seal Material
None
Configuration
Two
Static Load Rating
620000 N
Dynamic Load Rating
172000 N
Enclosure
Open
Weight
11.900 kg
Operating Temperature Range
-40 to 120 ºC

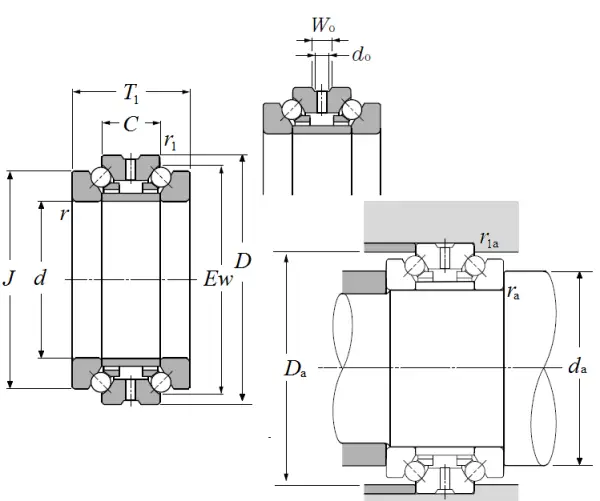

Dimensional Specifications
d
165.000 mm
D
240.000 mm
C
48.000 mm
T1
96.000 mm
J
212.000 mm
Ew
219.000 mm
r
2.100 mm
r1
1.100 mm
Wo
14.000 mm
do
6.000 mm
Contact Angle
60 º
da min
189.000 mm
Da max
189.000 mm
ras max
2.000 mm
r1as max
1.000 mm
