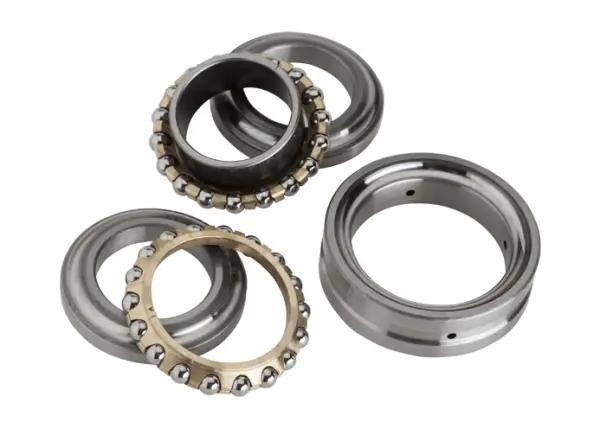

NTN 562040
Double Direction Angular Contact Thrust Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Thrust Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Brass
Ball Material
Steel
Limiting Speed - Oil
1700 RPM
Limiting Speed - Grease
1300 RPM
Seal Type
None
Seal Material
None
Configuration
Two
Static Load Rating
1030000 N
Dynamic Load Rating
271000 N
Enclosure
Open
Weight
32.700 kg
Operating Temperature Range
-40 to 120 ºC

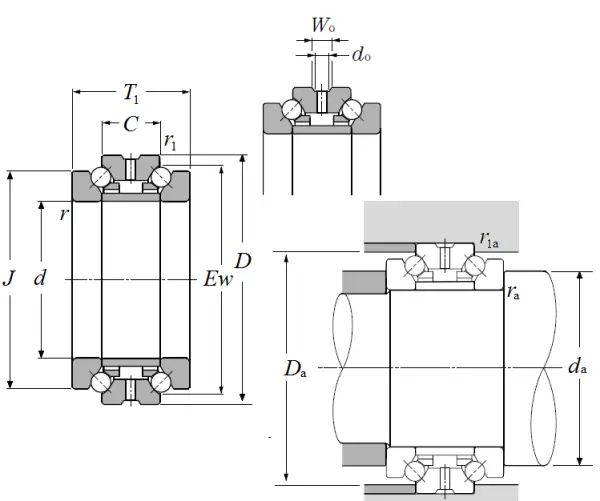

Dimensional Specifications
d
200.000 mm
D
310.000 mm
C
66.000 mm
T1
132.000 mm
J
274.000 mm
Ew
282.000 mm
r
2.100 mm
r1
1.100 mm
Wo
16.000 mm
do
8.000 mm
Contact Angle
60 º
da min
243.000 mm
Da max
243.000 mm
ras max
2.000 mm
r1as max
1.000 mm
