NTN 562044
Double Direction Angular Contact Thrust Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Thrust Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Brass
Ball Material
Steel
Limiting Speed - Oil
1500 RPM
Limiting Speed - Grease
1200 RPM
Seal Type
None
Seal Material
None
Configuration
Two
Static Load Rating
1270000 N
Dynamic Load Rating
335000 N
Enclosure
Open
Weight
42.800 kg
Operating Temperature Range
-40 to 120 ºC

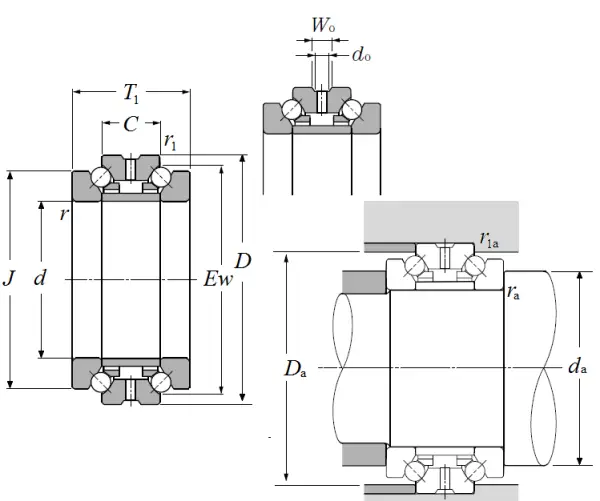

Dimensional Specifications
d
220.000 mm
D
340.000 mm
C
72.000 mm
T1
144.000 mm
J
304.000 mm
Ew
310.000 mm
r
3.000 mm
r1
1.100 mm
Wo
23.000 mm
do
12.000 mm
Contact Angle
60 º
da min
267.000 mm
Da max
267.000 mm
ras max
2.500 mm
r1as max
1.000 mm
