NTN 562056M

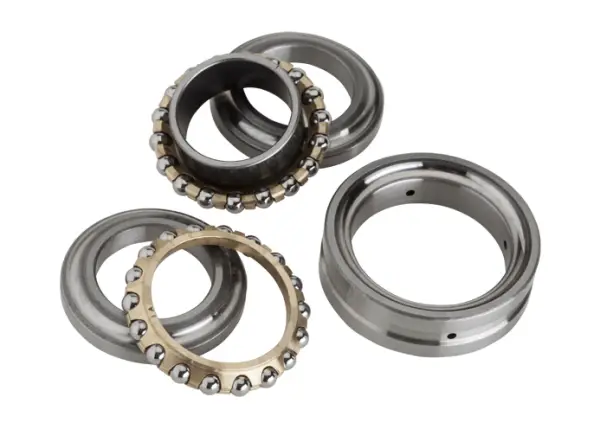

Double Direction Angular Contact Thrust Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Thrust Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Brass
Ball Material
Steel
Limiting Speed - Oil
1300 RPM
Limiting Speed - Grease
950 RPM
Seal Type
None
Seal Material
None
Configuration
Two
Static Load Rating
1810000 N
Dynamic Load Rating
415000 N
Enclosure
Open
Weight
64.000 kg
Operating Temperature Range
-40 to 120 ºC

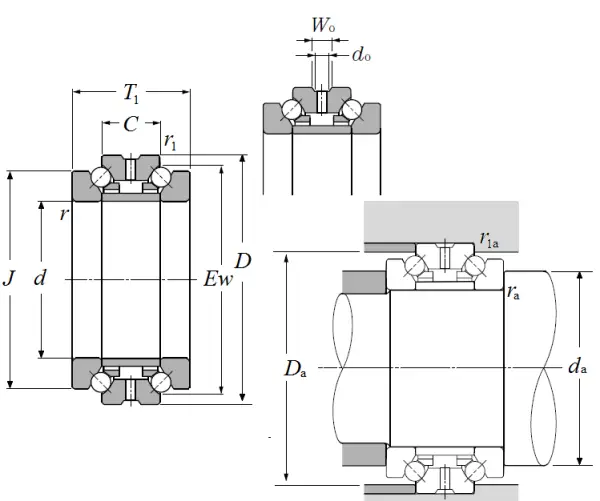

Dimensional Specifications
d
289.000 mm
D
420.000 mm
C
82.000 mm
T1
164.000 mm
J
374.000 mm
Ew
384.000 mm
r
4.000 mm
r1
1.500 mm
Wo
22 mm
do
12.000 mm
Contact Angle
60 º
da min
335.000 mm
Da max
335.000 mm
ras max
3 mm
r1as max
1.500 mm
