NTN 562922

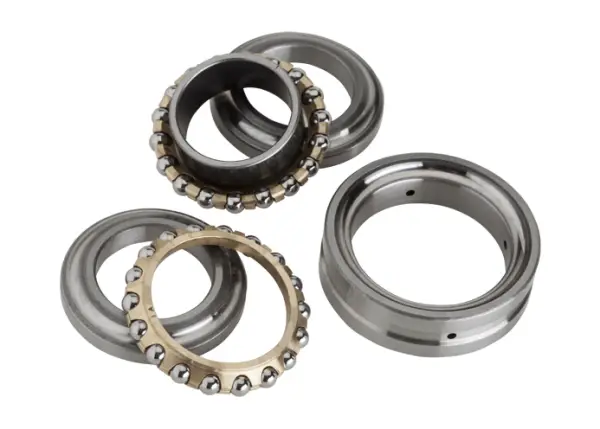

Double Direction Angular Contact Thrust Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Thrust Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Brass
Ball Material
Steel
Limiting Speed - Oil
3600 RPM
Limiting Speed - Grease
2700 RPM
Seal Type
None
Seal Material
None
Configuration
Two
Static Load Rating
193000 N
Dynamic Load Rating
54000 N
Enclosure
Open
Weight
2.210 kg
Operating Temperature Range
-40 to 120 ºC

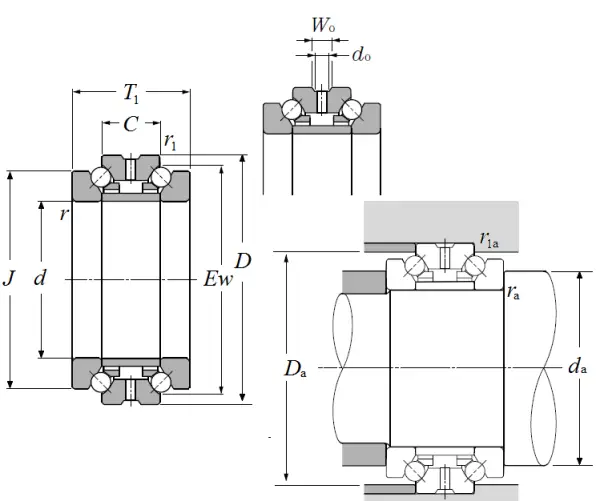

Dimensional Specifications
d
110.000 mm
D
150.000 mm
C
24.000 mm
T1
48.000 mm
J
136.000 mm
Ew
139.000 mm
r
1.100 mm
r1
0.600 mm
Wo
8.000 mm
do
4.000 mm
Contact Angle
60 º
da min
124.000 mm
Da max
124.000 mm
ras max
1.000 mm
r1as max
0.600 mm
