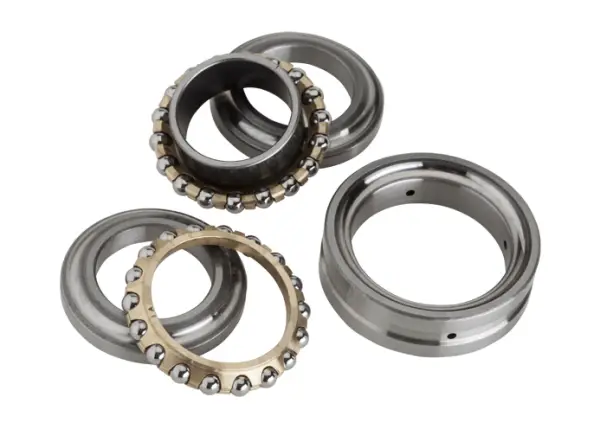

NTN 562924M
Double Direction Angular Contact Thrust Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Thrust Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Brass
Ball Material
Steel
Limiting Speed - Oil
3200 RPM
Limiting Speed - Grease
2400 RPM
Seal Type
None
Seal Material
None
Configuration
Two
Static Load Rating
242000 N
Dynamic Load Rating
65000 N
Enclosure
Open
Weight
2.750 kg
Operating Temperature Range
-40 to 120 ºC

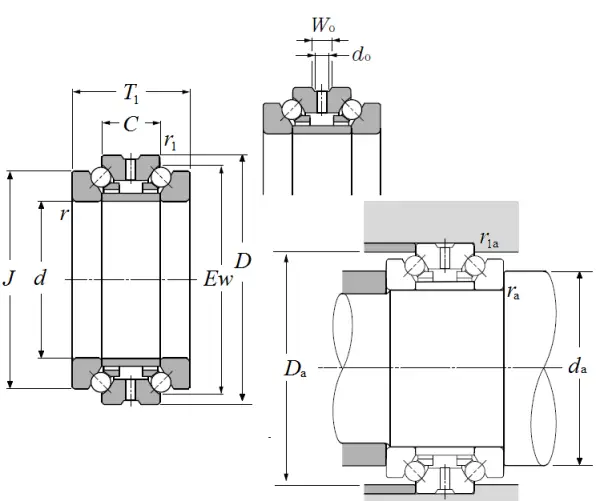

Dimensional Specifications
d
124.000 mm
D
165.000 mm
C
27.000 mm
T1
54.000 mm
J
150.000 mm
Ew
154.500 mm
r
1.100 mm
r1
0.600 mm
Wo
8.000 mm
do
4.000 mm
Contact Angle
60 º
da min
138.000 mm
Da max
138.000 mm
ras max
1.000 mm
r1as max
0.600 mm
