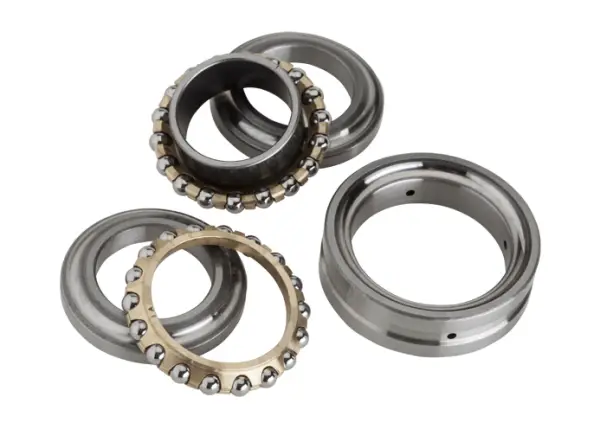

NTN 562926M
Double Direction Angular Contact Thrust Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Thrust Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Brass
Ball Material
Steel
Limiting Speed - Oil
2900 RPM
Limiting Speed - Grease
2200 RPM
Seal Type
None
Seal Material
None
Configuration
Two
Static Load Rating
284000 N
Dynamic Load Rating
75000 N
Enclosure
Open
Weight
3.700 kg
Operating Temperature Range
-40 to 120 ºC

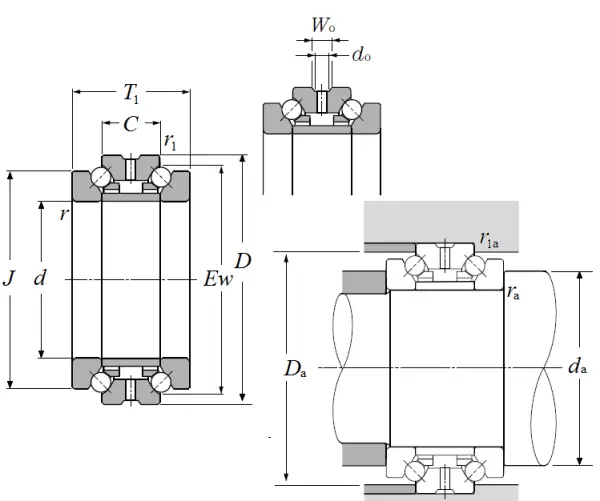

Dimensional Specifications
d
134.000 mm
D
180.000 mm
C
30.000 mm
T1
60.000 mm
J
163.000 mm
Ew
168.000 mm
r
1.500 mm
r1
1.000 mm
Wo
8.000 mm
do
4.000 mm
Contact Angle
60 º
da min
150.000 mm
Da max
150.000 mm
ras max
1.500 mm
r1as max
1.000 mm
