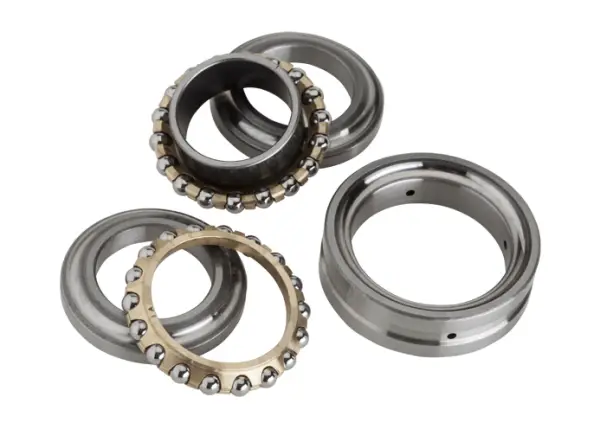

NTN 562938
Double Direction Angular Contact Thrust Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Thrust Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Brass
Ball Material
Steel
Limiting Speed - Oil
2000 RPM
Limiting Speed - Grease
1500 RPM
Seal Type
None
Seal Material
None
Configuration
Two
Static Load Rating
625000 N
Dynamic Load Rating
157000 N
Enclosure
Open
Weight
11.700 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
190.000 mm
D
260.000 mm
C
42.000 mm
T1
84.000 mm
J
237.000 mm
Ew
244.000 mm
r
2.000 mm
r1
1.000 mm
Wo
12.000 mm
do
6.000 mm
Contact Angle
60 º
da min
217.000 mm
Da max
217.000 mm
ras max
2.000 mm
r1as max
1.000 mm
