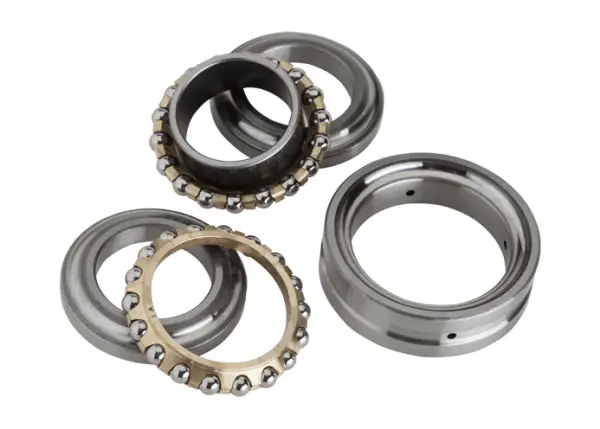

NTN 562948
Double Direction Angular Contact Thrust Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Thrust Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Brass
Ball Material
Steel
Limiting Speed - Oil
1600 RPM
Limiting Speed - Grease
1200 RPM
Seal Type
None
Seal Material
None
Configuration
Two
Static Load Rating
850000 N
Dynamic Load Rating
196000 N
Enclosure
Open
Weight
19.000 kg
Operating Temperature Range
-40 to 120 ºC

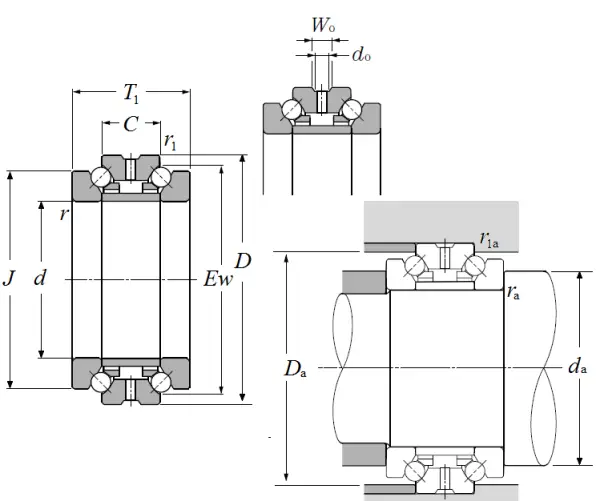

Dimensional Specifications
d
240.000 mm
D
320.000 mm
C
48.000 mm
T1
96.000 mm
J
292.000 mm
Ew
301.000 mm
r
2.100 mm
r1
1.100 mm
Wo
14.000 mm
do
6.000 mm
Contact Angle
60 º
da min
271.000 mm
Da max
271.000 mm
ras max
2.000 mm
r1as max
1.000 mm
