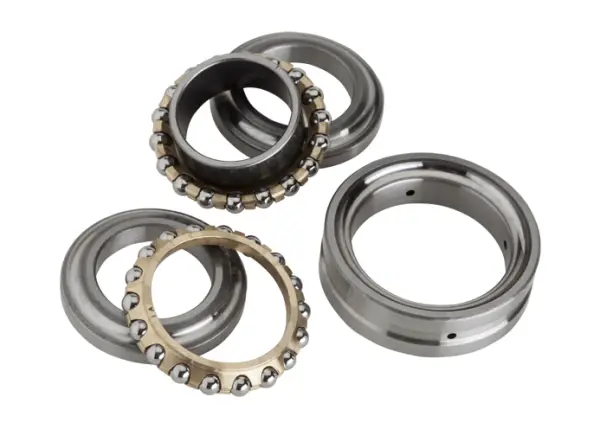

NTN 562956
Double Direction Angular Contact Thrust Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Thrust Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Brass
Ball Material
Steel
Limiting Speed - Oil
1300 RPM
Limiting Speed - Grease
980 RPM
Seal Type
None
Seal Material
None
Configuration
Two
Static Load Rating
1190000 N
Dynamic Load Rating
265000 N
Enclosure
Open
Weight
35.000 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
280.000 mm
D
380.000 mm
C
60.000 mm
T1
120.000 mm
J
348.000 mm
Ew
356.000 mm
r
2.100 mm
r1
1.100 mm
Wo
16.000 mm
do
8.000 mm
Contact Angle
60 º
da min
319.000 mm
Da max
319.000 mm
ras max
2.000 mm
r1as max
1.000 mm
