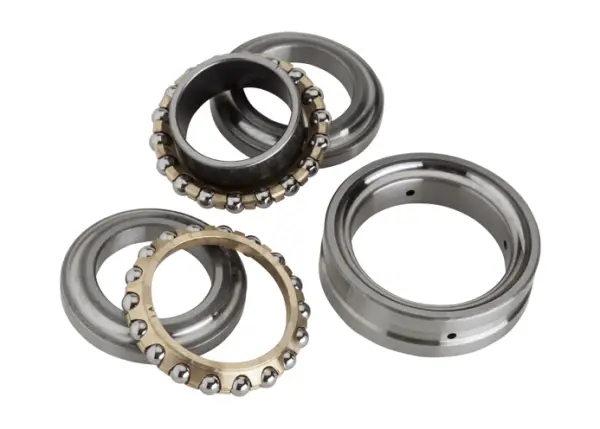

NTN 562960
Double Direction Angular Contact Thrust Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Thrust Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Brass
Ball Material
Steel
Limiting Speed - Oil
1100 RPM
Limiting Speed - Grease
840 RPM
Seal Type
None
Seal Material
None
Configuration
Two
Static Load Rating
1510000 N
Dynamic Load Rating
335000 N
Enclosure
Open
Weight
55.000 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
300.000 mm
D
420.000 mm
C
72.000 mm
T1
144.000 mm
J
384.000 mm
Ew
391.000 mm
r
3.000 mm
r1
1.100 mm
Wo
22 mm
do
12.000 mm
Contact Angle
60 º
da min
349.000 mm
Da max
349.000 mm
ras max
2.500 mm
r1as max
1.000 mm
