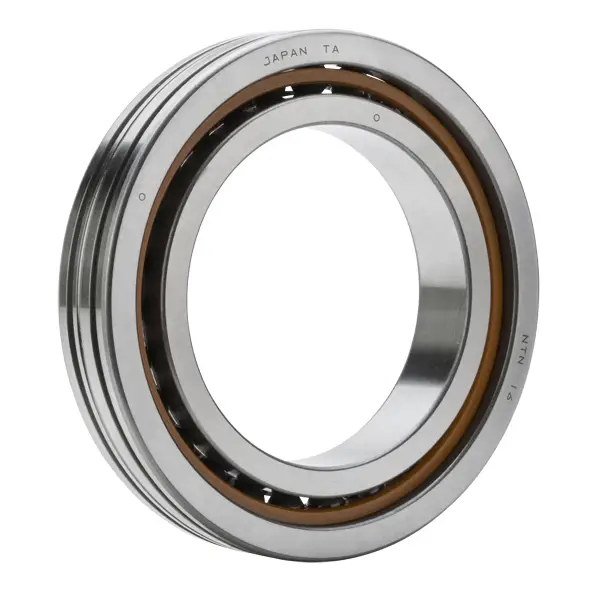

NTN 5S-2LA-HSF011AD
Super High-Speed Angular Contact Bearings - HSF Type
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Phenolic Resin
Ball Material
Ceramic
Limiting Speed - Oil
44800 RPM
Configuration
One
Static Load Rating
7800 N
Dynamic Load Rating
12600 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

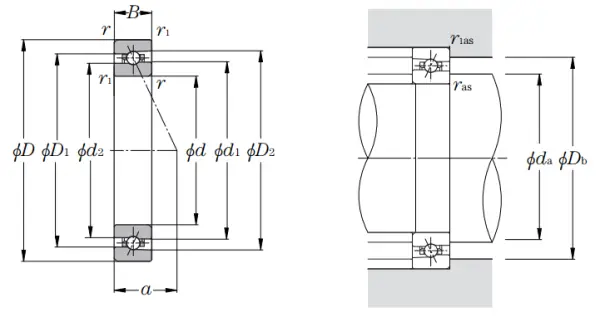

Dimensional Specifications
d
55.000 mm
D
90.000 mm
B
18.000 mm
d1
68.600 mm
d2
67.400 mm
D1
76.400 mm
D2
79.200 mm
r
1.100 mm
r1
0.600 mm
Contact Angle
25 º
a
26.000 mm
da min
62.000 mm
db min
59.500 mm
Da max
83.000 mm
Db max
85.500 mm
ras max
1.000 mm
r1as max
0.600 mm
Double Row Width
36.000 mm
Triple Row Width
54.000 mm
Quadruple Row Width
72.000 mm
