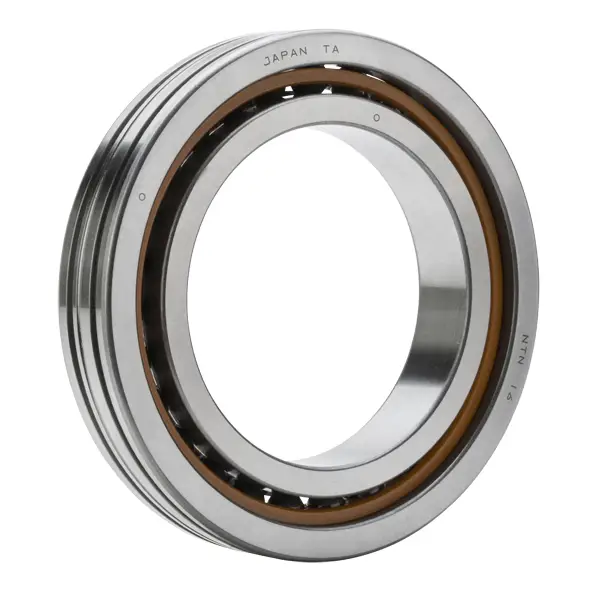

NTN 5S-2LA-HSF020AD
Super High-Speed Angular Contact Bearings - HSF Type
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Phenolic Resin
Ball Material
Ceramic
Limiting Speed - Oil
26000 RPM
Configuration
One
Static Load Rating
20000 N
Dynamic Load Rating
25300 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
100.000 mm
D
150.000 mm
B
24.000 mm
d1
119.800 mm
d2
118.000 mm
D1
130.200 mm
D2
134.200 mm
r
1.500 mm
r1
1.000 mm
Contact Angle
25 º
a
41.300 mm
da min
108.500 mm
db min
105.500 mm
Da max
141.500 mm
Db max
144.500 mm
ras max
1.500 mm
r1as max
1.000 mm
Double Row Width
48.000 mm
Triple Row Width
72.000 mm
Quadruple Row Width
96.000 mm
