NTN 5S-BNT908DTUP
Double Angular Contact Ball Bearings for Motors and Lathes
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Main Spindle Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Phenolic Resin
Ball Material
Ceramic
Seal Type
None
Seal Material
None
Precision
Special Precision
Configuration
Two
Enclosure
Open
Weight
0.196 kg
Operating Temperature Range
-40 to 120 ºC

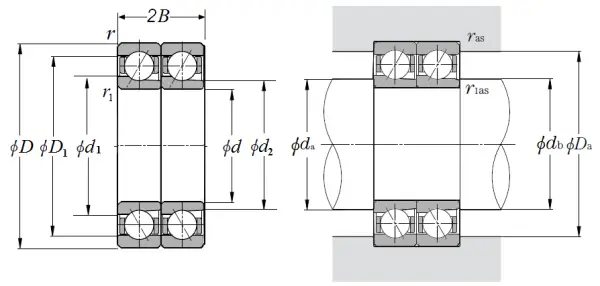

Dimensional Specifications
d
40.000 mm
D
62.000 mm
B
12.000 mm
2B
24.000 mm
d1
47.000 mm
d2
44.400 mm
D1
55.000 mm
r
0.600 mm
r1
0.300 mm
Contact Angle
15 º
da min
44.500 mm
db min
42.500 mm
Da max
57.500 mm
ras max
0.600 mm
r1as max
0.300 mm
