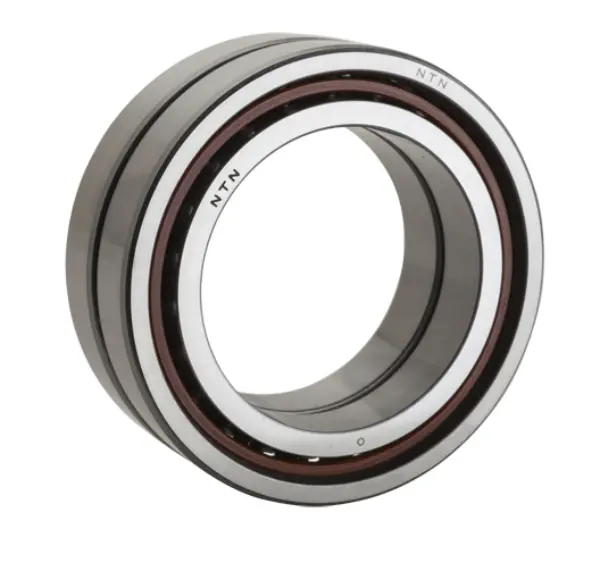

NTN 5S-BNT909DTUP
Double Angular Contact Ball Bearings for Motors and Lathes
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Main Spindle Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Phenolic Resin
Ball Material
Ceramic
Seal Type
None
Seal Material
None
Precision
Special Precision
Configuration
Two
Factor
10.4
Enclosure
Open
Weight
0.220 kg
Operating Temperature Range
-40 to 120 ºC

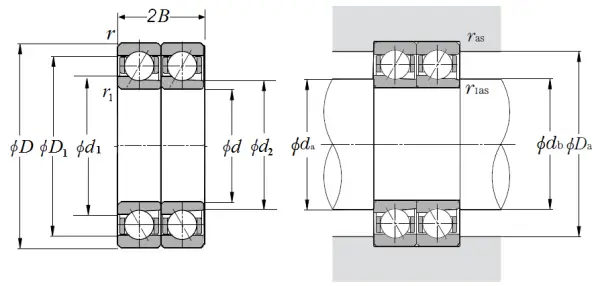

Dimensional Specifications
d
45.000 mm
D
68.000 mm
B
12.000 mm
2B
24.000 mm
d1
52.100 mm
d2
49.100 mm
D1
60.900 mm
r
0.600 mm
r1
0.300 mm
Contact Angle
15 º
da min
49.500 mm
db min
48.000 mm
Da max
63.500 mm
ras max
0.600 mm
r1as max
0.300 mm
