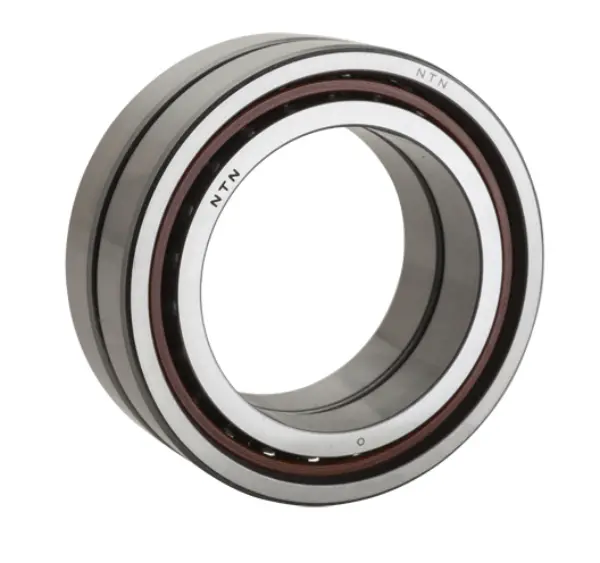

NTN 5S-HTA026UT2DB/GNUP-21
Duplex Angular Contact Ball Bearings for Axial Loads - HTA Type
(BRAND)：NTN
(Availability)：In Stock
Detailed data of
5S-HTA026UT2DB/GNUP-21
Technical Specifications
Type
Main Spindle Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Ceramic
Precision
Special Precision
Configuration
Two
Preload
Normal
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
130.000 mm
D
200.000 mm
B
31.500 mm
2B
63.000 mm
d1
97.400 mm
D2
112.500 mm
r
2.000 mm
r1
1.000 mm
Contact Angle
40 º
2a
170.800 mm
da min
90.000 mm
Db max
119.000 mm
ras max
1.000 mm
r1as max
0.600 mm
