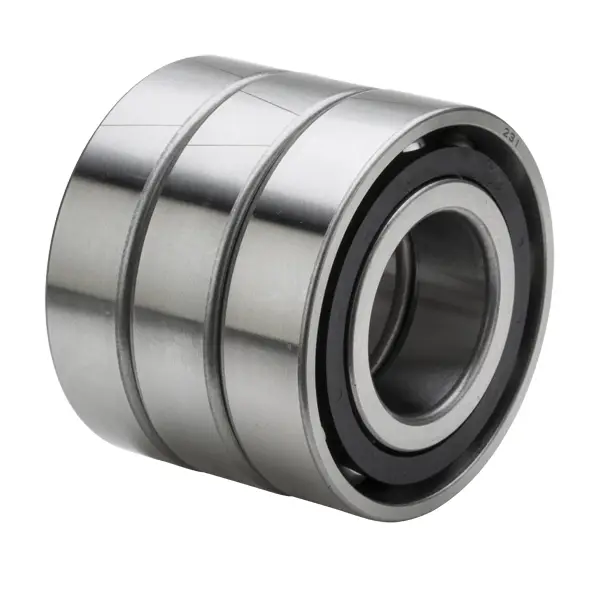

NTN 7001CVQ16J74
Multi-Row Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Material
High Carbon Chrome Steel
Bore Type
Round
Preload
Light
Enclosure
Open
Precision
ISO Class 4
Configuration
Three
Cage Material
Phenolic
Cage Type
Stratified
Ball Material
Steel
Operating Temperature Range
-40 to 120 ºC

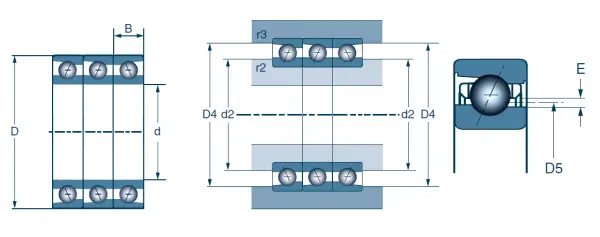

Dimensional Specifications
d
12.000 mm
D
28.000 mm
B
8.000 mm
Total Width
24.000 mm
r2
0.300 mm
r3
0.150 mm
d2
16.700 mm
D4
24.700 mm
D5
18.500 mm
E
1.650 mm
Contact Angle
15 º
