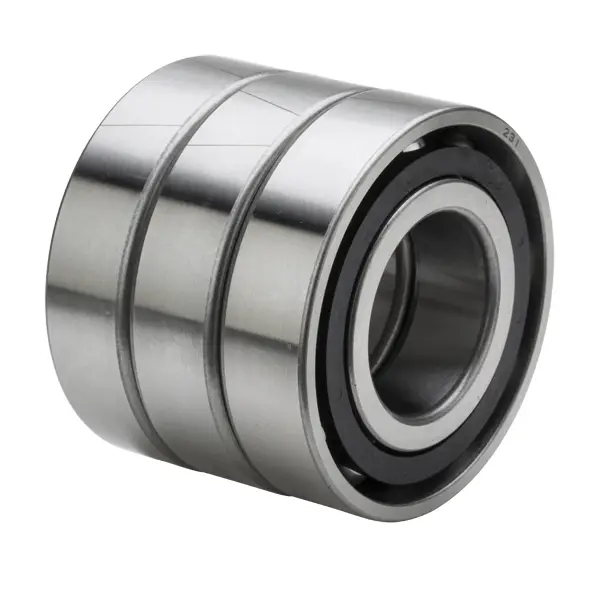

NTN 7003HVQ16J84
Multi-Row Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Material
High Carbon Chrome Steel
Bore Type
Round
Preload
Medium
Enclosure
Open
Precision
ISO Class 4
Configuration
Three
Cage Material
Phenolic
Cage Type
Stratified
Ball Material
Steel
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
17.000 mm
D
35.000 mm
B
10.000 mm
Total Width
30.000 mm
r2
0.300 mm
r3
0.150 mm
d2
22.700 mm
D4
30.700 mm
D5
24.400 mm
E
1.750 mm
Contact Angle
25 º
