NTN 7008CV
Single Row Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stratified
Cage Material
Phenolic
Ball Material
Steel
Limiting Speed - Oil
33000 RPM
Limiting Speed - Grease
21000 RPM
Configuration
One
Static Load Rating
16800 N
Dynamic Load Rating
21600 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

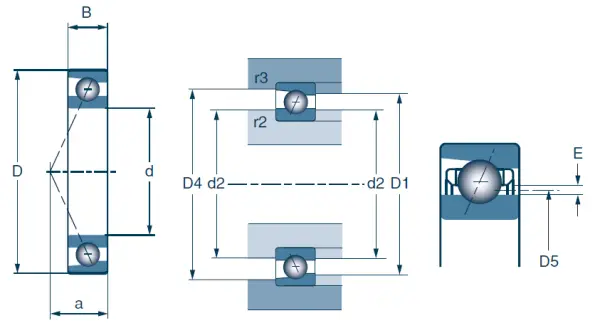

Dimensional Specifications
d
40.000 mm
D
68.000 mm
B
15.000 mm
r2 max
1.000 mm
r3 max
0.600 mm
Contact Angle
15 º
a (Load Center)
15.000 mm
d2
49.200 mm
D1
59.000 mm
D4
61.800 mm
D5
2.0394 mm
E
51.800 mm
Double Row Width
30.000 mm
Triple Row Width
45.000 mm
Quadruple Row Width
60.000 mm
