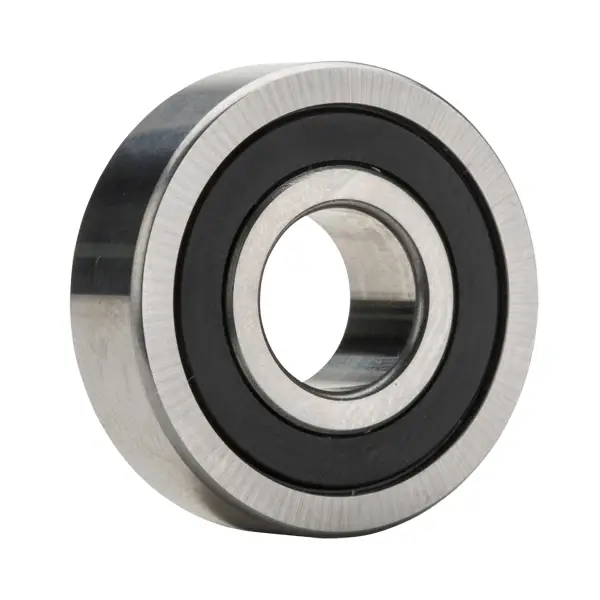

NTN 7010CDLLB
Sealed Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Grease
18600 RPM
Seal Type
Non-Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Static Load Rating
22900 N
Dynamic Load Rating
28600 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

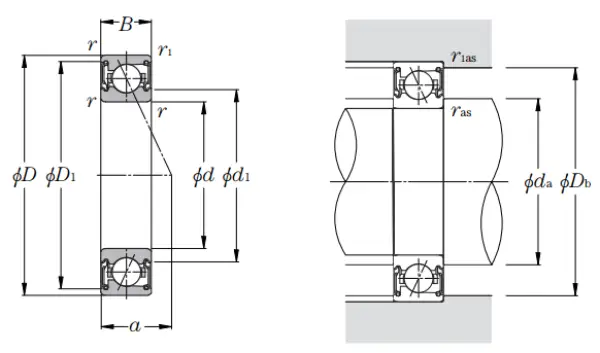

Dimensional Specifications
d
50.000 mm
D
80.000 mm
B
16.000 mm
d1
58.300 mm
da min
55.500 mm
D1
75.300 mm
Db
75.500 mm
r
1.000 mm
r1
0.600 mm
Contact Angle
15 º
a
16.800 mm
Da max
75.300 mm
Double Row Width
32.000 mm
Triple Row Width
48.000 mm
Quadruple Row Width
64.000 mm
