NTN 7012HVQ16J84
Multi-Row Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Material
High Carbon Chrome Steel
Bore Type
Round
Preload
Medium
Enclosure
Open
Precision
ISO Class 4
Configuration
Three
Cage Material
Phenolic
Cage Type
Stratified
Ball Material
Steel
Operating Temperature Range
-40 to 120 ºC

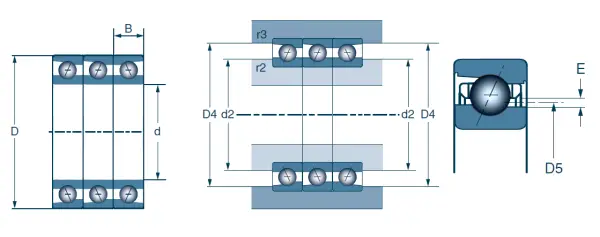

Dimensional Specifications
d
60.000 mm
D
95.000 mm
B
18.000 mm
Total Width
54.000 mm
r2
1.100 mm
r3
0.600 mm
d2
70.000 mm
D4
89.000 mm
D5
73.800 mm
E
2.000 mm
Contact Angle
25 º
