NTN 7017CVDUJ84
Duplex Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stratified
Cage Material
Phenolic
Ball Material
Steel
Precision
ISO Class 4
Configuration
Two
Preload
Medium
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

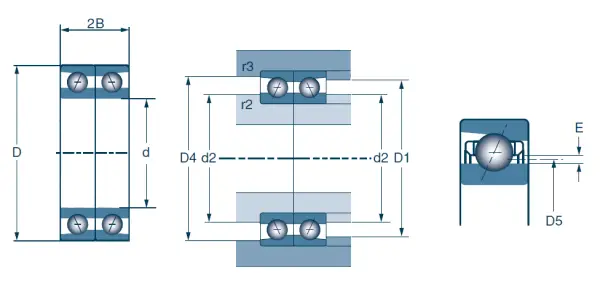

Dimensional Specifications
d
85.000 mm
D
130.000 mm
B
22.000 mm
2B
44.000 mm
r2 max
1.100 mm
r3 max
0.600 mm
Contact Angle
15 º
d2
98.000 mm
D1
117.000 mm
D4
122.500 mm
D5
102.800 mm
E
3.500 mm
