NTN 7020CVDUJ74
Duplex Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stratified
Cage Material
Phenolic
Ball Material
Steel
Precision
ISO Class 4
Configuration
Two
Preload
Light
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

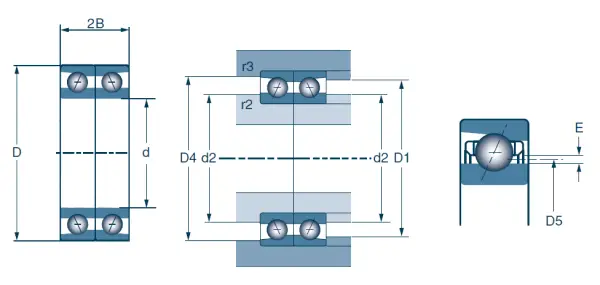

Dimensional Specifications
d
100.000 mm
D
150.000 mm
B
24.000 mm
2B
48.000 mm
r2 max
1.500 mm
r3 max
1.000 mm
Contact Angle
15 º
d2
114.500 mm
D1
135.500 mm
D4
141.500 mm
D5
119.700 mm
E
3.800 mm
