NTN 7026CG1J04M21
Single Row Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stratified
Cage Material
Phenolic
Ball Material
Steel
Configuration
One
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

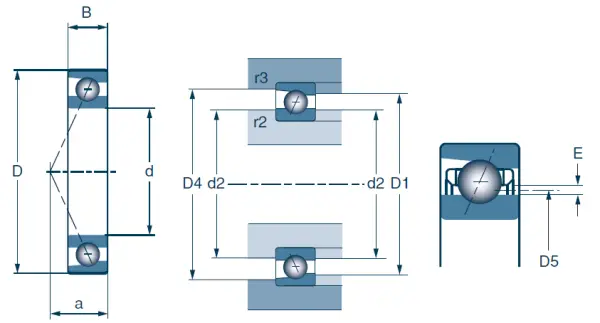

Dimensional Specifications
d
130.000 mm
D
200.000 mm
B
33.000 mm
r2 max
2.000 mm
r3 max
1.000 mm
Contact Angle
15 º
d2
137.000 mm
D1
163.000 mm
D4
170.000 mm
D5
5.6693 mm
E
144.000 mm
Double Row Width
66.000 mm
Triple Row Width
99.000 mm
Quadruple Row Width
132.000 mm
