NTN 7040CVDUJ94
Duplex Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stratified
Cage Material
Phenolic
Ball Material
Steel
Precision
ISO Class 4
Configuration
Two
Preload
Heavy
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

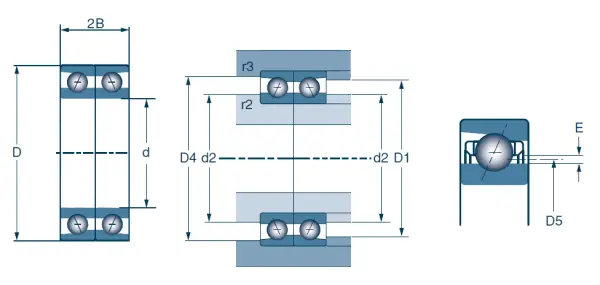

Dimensional Specifications
d
200.000 mm
D
310.000 mm
B
51.000 mm
2B
102.000 mm
r2 max
2.100 mm
r3 max
1.100 mm
Contact Angle
15 º
d2
233.500 mm
D1
276.500 mm
D4
292.000 mm
D5
243.600 mm
E
8.600 mm
