NTN 71910HVQ16J74
Multi-Row Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Material
High Carbon Chrome Steel
Bore Type
Round
Preload
Light
Enclosure
Open
Precision
ISO Class 4
Configuration
Three
Cage Material
Phenolic
Cage Type
Stratified
Ball Material
Steel
Operating Temperature Range
-40 to 120 ºC

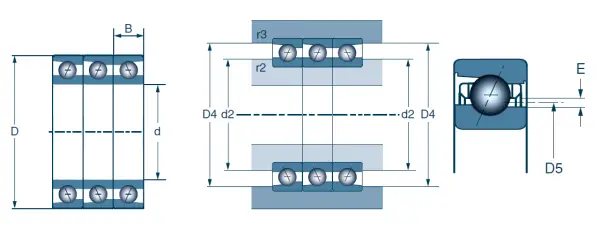

Dimensional Specifications
d
50.000 mm
D
72.000 mm
B
12.000 mm
Total Width
36.000 mm
r2
0.600 mm
r3
0.300 mm
d2
56.800 mm
D4
67.200 mm
D5
58.900 mm
E
2.130 mm
Contact Angle
25 º
