NTN 71918CUJ74
Single Row Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Phenolic Resin
Ball Material
Steel
Limiting Speed - Oil
16000 RPM
Limiting Speed - Grease
10500 RPM
Precision
ISO Class 4
Configuration
One
Preload
Light
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

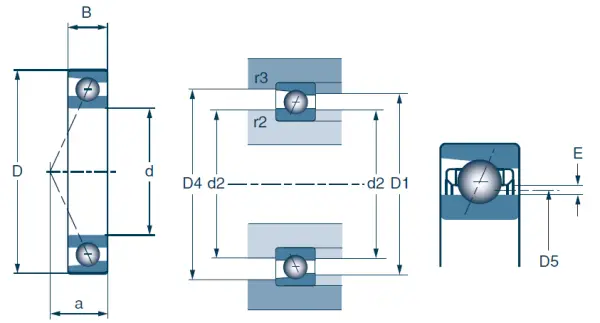

Dimensional Specifications
d
90.000 mm
D
125.000 mm
B
18.000 mm
r2 max
1.100 mm
r3 max
0.600 mm
Contact Angle
15 º
a (Load Center)
23.000 mm
d2
100.000 mm
D1
115.000 mm
D4
119.000 mm
D5
4.0748 mm
E
103.500 mm
Double Row Width
36.000 mm
Triple Row Width
54.000 mm
Quadruple Row Width
72.000 mm
