NTN 71932CVURJ74
Single Row Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stratified
Cage Material
Phenolic
Ball Material
Steel
Limiting Speed - Oil
9400 RPM
Limiting Speed - Grease
6200 RPM
Precision
ISO Class 4
Configuration
One
Preload
Light
Static Load Rating
132000 N
Dynamic Load Rating
106000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

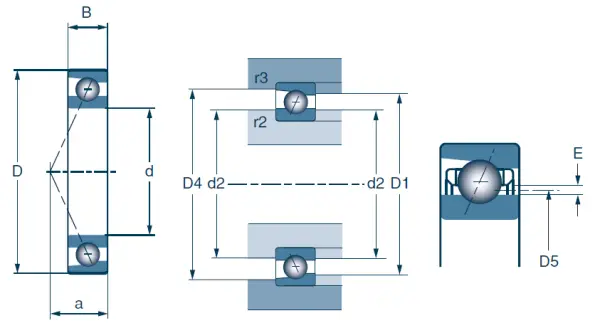

Dimensional Specifications
d
160.000 mm
D
220.000 mm
B
28.000 mm
r2 max
2.000 mm
r3 max
1.000 mm
Contact Angle
15 º
a (Load Center)
39.000 mm
d2
177.500 mm
D1
202.500 mm
D4
209.000 mm
D5
7.2441 mm
E
184.000 mm
Double Row Width
56.000 mm
Triple Row Width
84.000 mm
Quadruple Row Width
112.000 mm
