NTN 71940CVQ21J74
Multi-Row Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Material
High Carbon Chrome Steel
Bore Type
Round
Preload
Light
Enclosure
Open
Precision
ISO Class 4
Configuration
Four
Cage Material
Phenolic
Cage Type
Stratified
Ball Material
Steel
Operating Temperature Range
-40 to 120 ºC

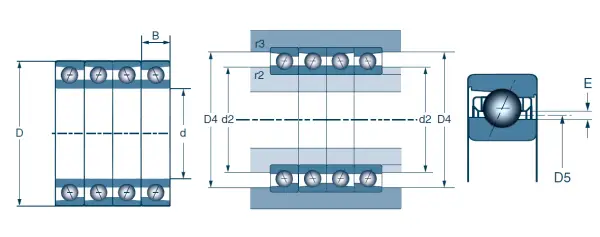

Dimensional Specifications
d
200.000 mm
D
280.000 mm
B
38.000 mm
Total Width
152.000 mm
r2
2.100 mm
r3
1.100 mm
d2
224.500 mm
D4
266.000 mm
D5
232.000 mm
E
5.500 mm
Contact Angle
15 º
