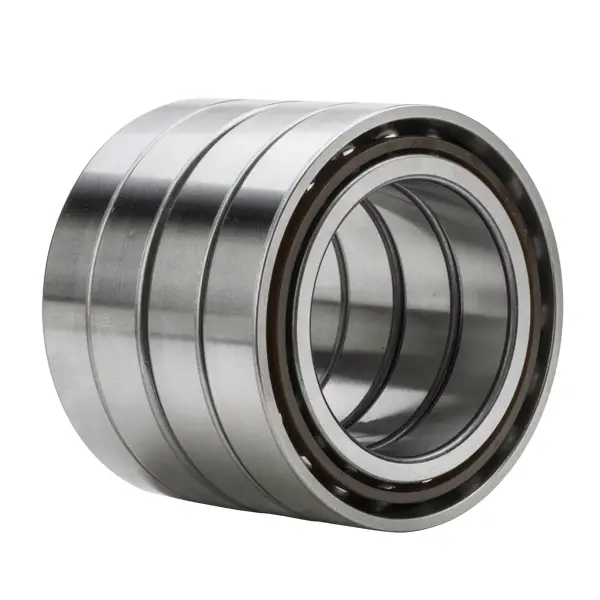

NTN 7205HG1Q21J74
Multi-Row Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Material
High Carbon Chrome Steel
Bore Type
Round
Preload
Light
Enclosure
Open
Precision
ISO Class 4
Configuration
Four
Cage Material
Phenolic
Cage Type
Stratified
Ball Material
Steel
Operating Temperature Range
-40 to 120 ºC

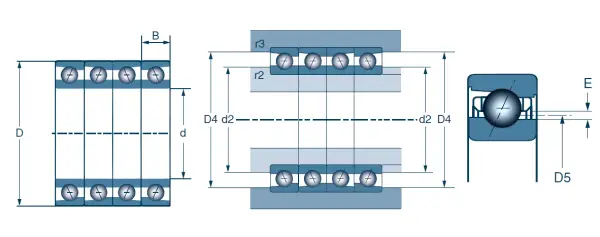

Dimensional Specifications
d
25.000 mm
D
52.000 mm
B
15.000 mm
Total Width
60.000 mm
r2
1.000 mm
r3
0.300 mm
d2
34.000 mm
D4
46.900 mm
D5
36.800 mm
E
2.800 mm
Contact Angle
25 º
