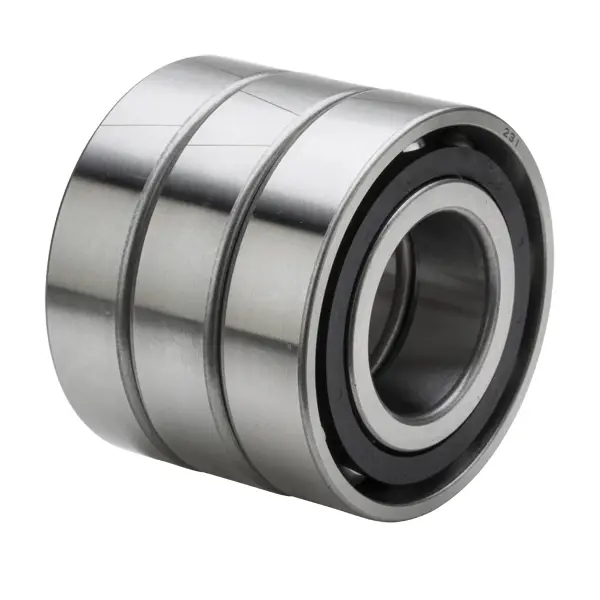

NTN 7220HG1Q16J74
Multi-Row Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Material
High Carbon Chrome Steel
Bore Type
Round
Preload
Light
Enclosure
Open
Precision
ISO Class 4
Configuration
Three
Cage Material
Phenolic
Cage Type
Stratified
Ball Material
Steel
Operating Temperature Range
-40 to 120 ºC

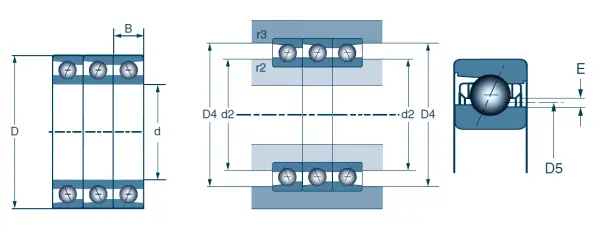

Dimensional Specifications
d
100.000 mm
D
180.000 mm
B
34.000 mm
Total Width
102.000 mm
r2
2.100 mm
r3
1.100 mm
d2
124.500 mm
D4
167.000 mm
D5
131.000 mm
E
3.800 mm
Contact Angle
25 º
